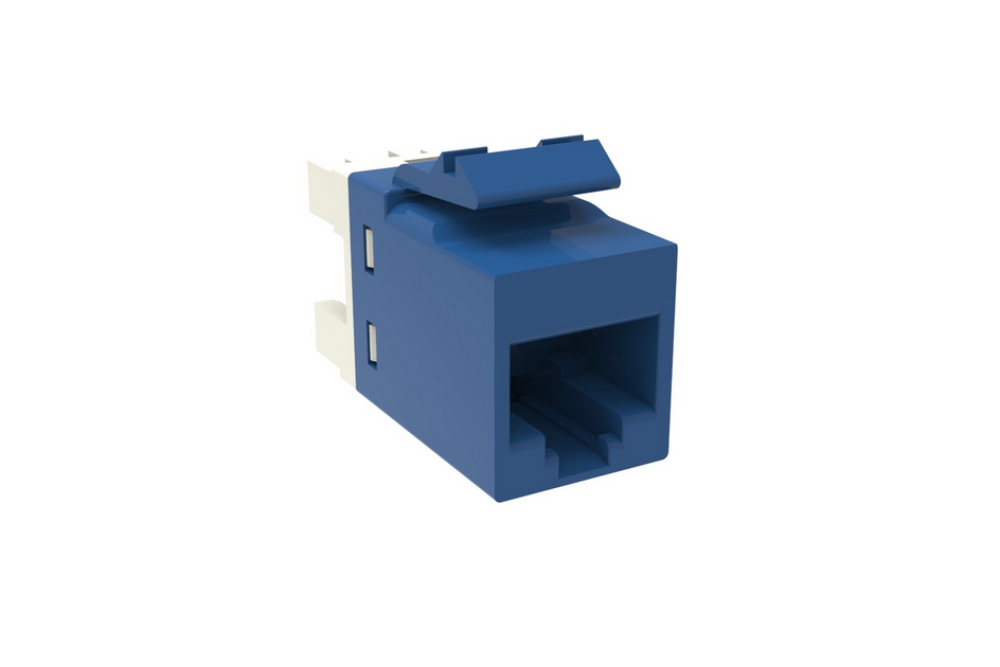

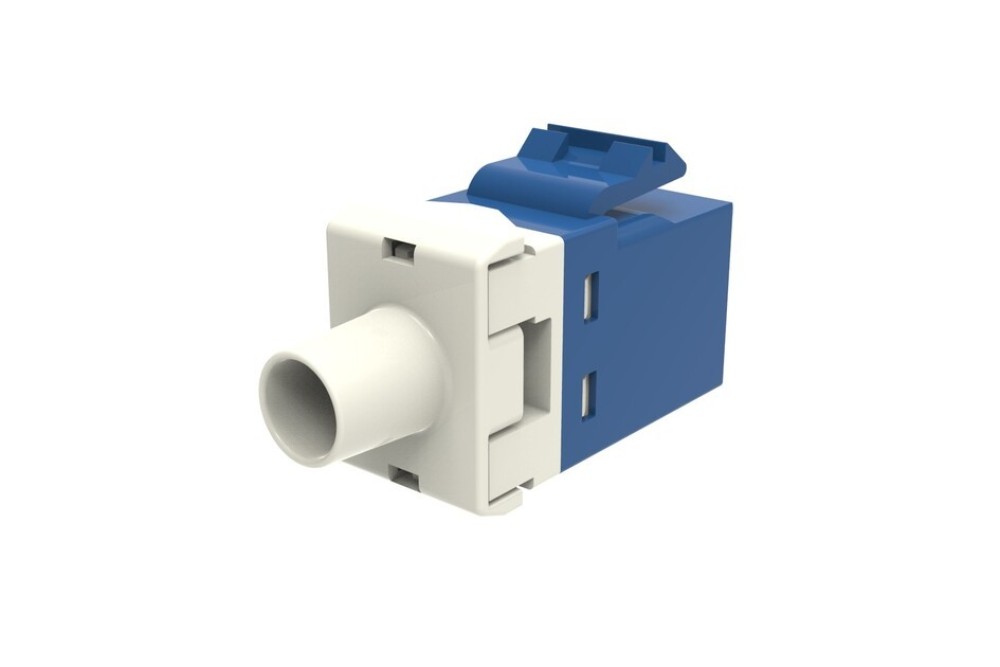

CommScope 1375055-6 SL110-6-BL Cat6 RJ45 Modular Jack Unshielded Keystone Jack Blue
SKU: 1375055-6
Category: Networking Products
Availability: 10000
₹ 450.00
Tag: commscope keystone jack sl110-6-bl 1375055-6 rj45 modular jack cat6 rj45 jack unshielded keystone jack blue keystone jack cat6 network jack ethernet keystone jack lan keystone jack rj45 female connector idc termination jack t568a t568b compatible structured cabling jack network connectivity solution cat6 utp jack modular network jack patch panel keystone jack faceplate compatible jack commscope netconnect sl series jack data networking accessories high performance cat6 jack poe compatible keystone jack network installation hardware rj45 utp keystone ethernet wall jack copper network jack commscope cat6 jack
Description
The CommScope NETCONNECT® SL Series Cat6 Modular Jack is a high-performance unshielded connectivity solution designed for reliable structured cabling installations. Engineered to meet ANSI/TIA Category 6 and ISO/IEC 11801 Class E standards, this blue modular jack delivers dependable network performance for voice, data, and Power over Ethernet (PoE) applications. Compatible with both solid and stranded conductors, it supports T568A and T568B wiring schemes for flexible deployment in commercial and enterprise networks.
Built with premium materials including gold-plated beryllium copper contacts and phosphor bronze IDC terminations, the jack ensures long-lasting durability and excellent signal integrity. It supports IEEE 802.3bt Type 4 PoE applications up to 90W and is designed to withstand over 3,000 plug-to-jack mating cycles. The compact SL Series design allows seamless installation into compatible SL Series faceplates and panels, making it an ideal choice for professional network infrastructure deployments.
Product Specifications
Brand: Commscope
Model Number: 1375055-6
Availability: In stock
Minimum order quantity: 1
Maximum order quantity: 10
Listed date: 17th Jun, 2026
Specifications
General Specifications
| Specification | Details |
|---|---|
| Brand Portfolio | NETCONNECT® |
| Product Type | Modular Jack |
| Product Series | SL Series |
| Regional Availability | China |
| ANSI/TIA Category | Category 6 |
| Cable Type | Unshielded |
| Color | Blue |
| Conductor Type | Solid, Stranded |
| Mounting | SL Series Faceplates and Panels |
| Termination Type | IDC |
| Termination Tool | 110 Punchdown Tool, JTT Termination Tool |
| Minimum Punchdown Cycles | 20 Times |
| Wiring Scheme | T568A, T568B |
| Transmission Standards | ANSI/TIA-568.2-D, ISO/IEC 11801 Class E |
| Integrated Dust Cover | None |
Dimensions
| Specification | Details |
|---|---|
| Height | 16.13 mm |
| Width | 14.48 mm |
| Depth | 30.48 mm |
| Maximum Cable Diameter | 5.8 mm |
| Maximum Insulated Conductor Diameter | 1.45 mm |
| Contact Plating Thickness | 1.27 µm |
| Compatible Solid Conductor Gauge | 22–24 AWG |
| Compatible Stranded Conductor Gauge | 24–26 AWG |
Electrical Specifications
| Specification | Details |
|---|---|
| Maximum Contact Resistance | 20 mΩ |
| Current Rating | 1.5 A @ 20°C |
| Dielectric Withstand Voltage | 1000 Vac @ 60 Hz |
| Minimum Insulation Resistance | 500 MΩ |
| Safety Voltage Rating | 150 Vac |
| Remote Powering | Supports IEEE 802.3bt Type 4 PoE |
| PoE Durability | Supports 90W PoE applications with over 3,000 mating cycles |
Material Specifications
| Specification | Details |
|---|---|
| Contact Base Material | Beryllium Copper |
| Contact Plating Material | Gold |
| IDC Termination Material | Phosphor Bronze |
| Housing Material | PC+ABS |
| Termination Contact Plating | Tin |
Mechanical Specifications
| Specification | Details |
|---|---|
| Plug Retention Force | 90 N |
| Mating Cycle Compliance | IEC 60603-7 Series |
Environmental Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | Up to 95%, Non-Condensing |
| Flammability Rating | UL 94 V-0 |
| Safety Standard | cULus |
Packaging Information
| Specification | Details |
|---|---|
| Packaging Quantity | 1 |
| Packaging Type | Bag |
Compliance & Certifications
| Certification | Status |
|---|---|
| China RoHS | Below Maximum Concentration Value |
| REACH-SVHC | Compliant |
| RoHS | Compliant |
| UK RoHS | Compliant |
